Crop Image

The Crop function is available on the Image menu and from the Crop Toolbar Button toolbar button.

When the Crop option is clicked a selection rectangle is shown over the image. The rectangle can be stretched and positioned with the mouse using the grab handles at the corners and at the middle of each edge.

Crop selection example Grab Handle Grab Handle Grab Handle Grab Handle Grab Handle Grab Handle Grab Handle Grab Handle Crop Toolbar Button Selection area fror crop operation Position and Size of Crop selection area Zoom options Pan option Digitising Toolbar Image Processng Toolbar VectorisationToolbar Open Image Toolbar button Save Image Toolbar button Save Vector Toolbar button Undo Toolbar button Print Toolbar button Display Raster Toolbar button Display Vector Toolbar button Pen Tool Toolbar button Erase Tool Toolbar button Erase Area Toolbar button Menus

The exact size and position of the selection rectangle is shown on the status bar at the bottom left of the WinTopo Pro window.

When you have selected the position and size that you want you should click the Crop Toolbar Button toolbar button again. This will crop the image to the selection.

If you do not like the result you can use the Undo Toolbar Button toolbar button to reverse the change.

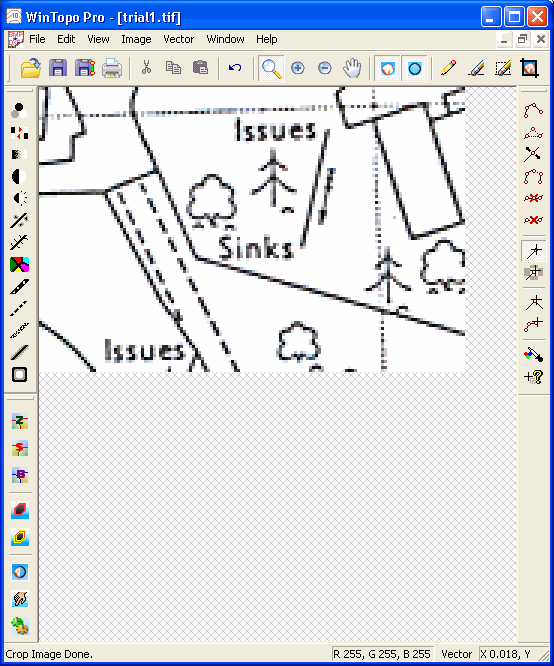

Example after Crop Crop Toolbar Button Status message Zoom options Pan option Digitising Toolbar Image Processng Toolbar VectorisationToolbar Open Image Toolbar button Save Image Toolbar button Save Vector Toolbar button Undo Toolbar button Print Toolbar button Display Raster Toolbar button Display Vector Toolbar button Pen Tool Toolbar button Erase Tool Toolbar button Erase Area Toolbar button Menus

The selection rectangle does not need to be totally within the image. You can make a selection which overlaps the edges of the image. The resulting cropped image will have background colour pixels in the area which was not within the original image.

While the selection rectangle is shown (before the image is cropped) you can zoom and scroll the image in the normal way. In fact, you can use any of the normal processing options.

To cancel the selection rectangle without performing the crop you can click the Right mouse button when the cursor is inside the selection area, or simply press the Escape button on the keyboard.
